SWING CHECK VALVE
1) ALSO KNOWN AS NON RETURN VALVE
2) PREVENTION OF BACK FLOW IS THE MAIN FUNCTION OF
A CHECK VALVE
3) SIMPLE DESIGN
4) NO NEED FOR HUMAN INTERVENTION

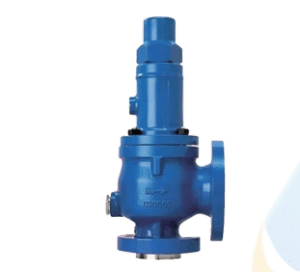

PRESSURE SAFETY / RELIEF VALVE
1) USED TO PROTECT EQUIPMENT OR PIPING SYSTEM
DURING AN OVER PRESSURE EVENT
2) THIS VALVE RELEASE THE PRESSURE OR VACUUM AT
PREDEFINED SET PRESSURE
3) CAN BE USED IN ALL TYPES OF GAS AND LIQUID
APPLICATION
4) CAN ALSO BE USED IN HIGH PRESSURE AND
TEMPERATURE APPLICATION
5) COST-EFFECTIVE
PLUG VALVE
2) PLUG TYPE DISK
1) QUATER TURN ROTARY MOTION VALVE
3) USED AS ON/OFF VALVE
4) SIMPLE MECHANISM
5) EASY IN-LINE MAINTENANCE
6) LOW PRESSURE DROP
7) RELIABLE AND TIGHT SEAL CAPABILITY
8) FAST – ACTING TO OPEN OR CLOSE AS IT ONLY NEEDS
QUARTER TURN
PINCH VALVE FUNCTION
1) LINER NOTION VALVE
2) RUBBER TUBE CALLED PINCH TUBE
3) ON/OFF: STARTS OR STOPES FLOW WITHIN A SYSTEM
4) FLOW CONTROL: REGULATES FLOW
5) USED TO CONTROL SOLID MATERIAL LIKE SLURRY
NEEDLE VALVE
1) PROVIDE MORE PRECISION AND CONTROL IN SMALLER PIPING
SYSTEMS
2) ITS MECHANISM ACT SIMILARLY TO THAT OF GLOBE VALVE
3) THE LONG TAPERED NEEDLE LIKE POINT ON THE END OF THE
VALVE STEM ACT AS A DISK
4) NEEDLE VALVE USED IN AIR, OIL, GAS, STEAM ETC
DIAPHRAGM VALVE
1) A DIAPHRAGM IS A FLEXIBLE, PRESSURE RESPONSIVE ELEMENT
THAT TRANSMITS FORCE TO OPEN, CLOSE OR CONTROL A VALVE
2) USED IN LOW PRESSURE AND LOW TEMPERATURE
3) FLOW NOT IMMEDIATE SHUT OFF
CONTROL VALVE
1) IT WORK ON CONTROLLER SET POINT TYPICALLY PRESSURE TEMP AND FLOW
2) CONTROL THE FLOW OF LIQUIDS BY FULLY OPEN OR FULLY
CLOSED OR PARTIALLY OPENED OR PARTIALLY CLOSED OF VALVE
3) WITH THE USE OF ELECTRICAL HYDRALICAL, MECHANICALLY OR
PNEUMATICALLY ACTUATORS, CONTROL VALVE AUTOMATICALLY
OPEN & CLOSED THE VALVE
BUTTERFLY VALVE
1) QUATER TURN ROTARY MOTION VALVE
2) USED IN LOW PRESSURE LINE
5) COMPACT DESIGN
3) ON/OFF: STARTS OR STOPS FLOW WITHIN A SYSTEM
4) FLOW CONTROL: REGULATE FLOW
6) LIGHT WEIGHT
7] MINIMAL PRESSURE DROP
8] EASY TO INSTALL

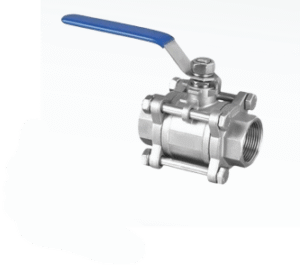

BALL VALVE
1) QUATER TURN ROTARY MOTION VALVE
2) LOW PRESSURE LINE
3) BALL SHAPED DISK
4) SMALER & LIGHTER THAN GATE VALVE
5) THE BALL DISK IS ONE OF THE QUICKEST VALAVES BECAUSE
IT ONLY NEED A QUARTER TURN TO OPEN OR

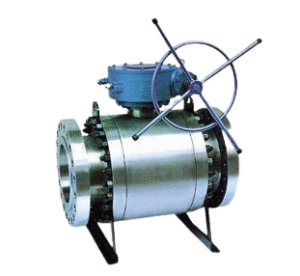

FORGED FLOATING BALL VALVE
Forged Floa ng Ball Valve
Design: API 608, API 6D,ASME B16.34, ISO 14313,
ISO 10423, ISO 17292
Pressures range: ANSI 150~ANSI 1500
PN10~PN250
Size range: 1/2″-12″ / DN15~DN300
Shilt

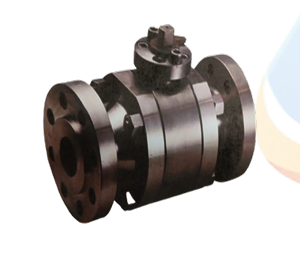

FORGED FLOATING METAL SEAT BALL VALVE
Design: ASME B16.34, ISO 14313, ISO 10423, ISO
17292
Pressures range: ANSI 150 ~ANSI 2500
,PN10~PN420
Size range: 1/2″-12″ / DN15~DN300
